By Roca

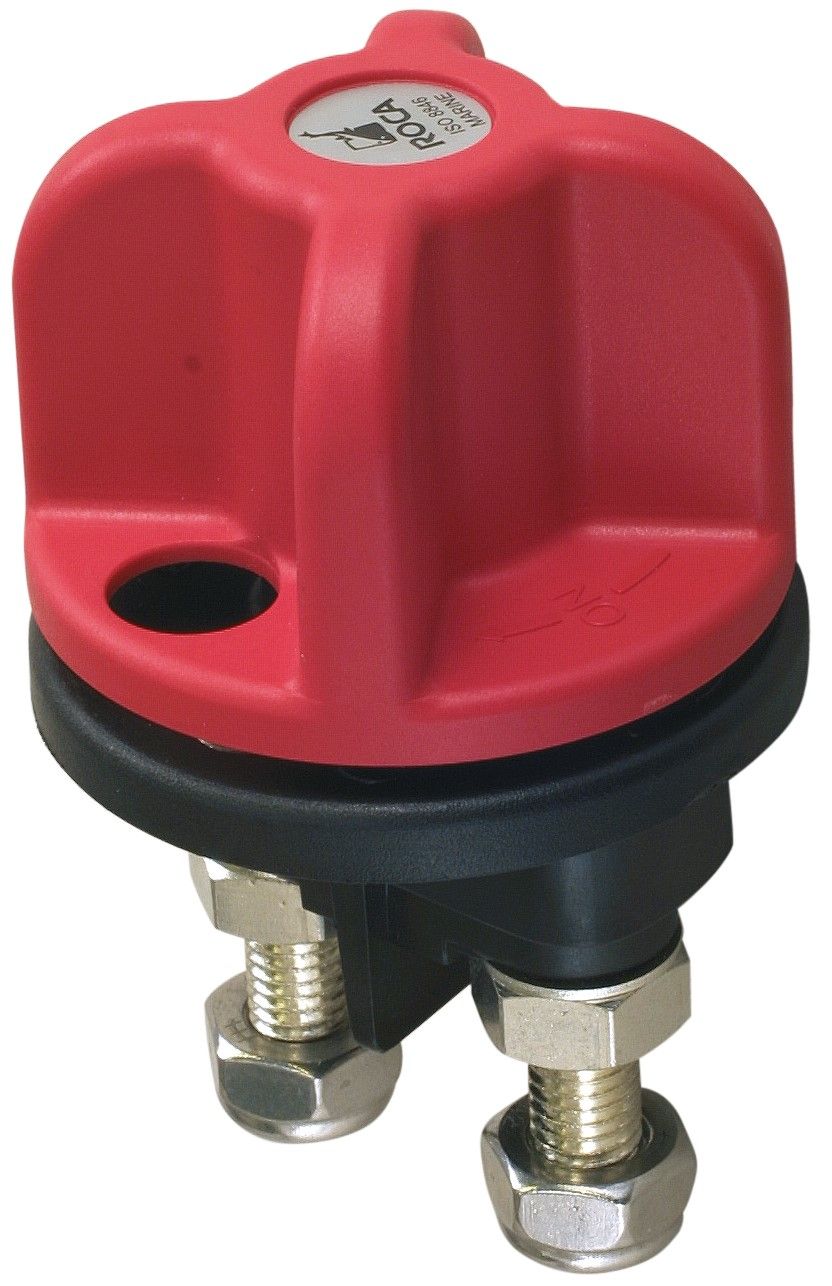

Roca Battery Main Switch gas-tight – 250 A / 24 V according to ISO 8846

€48,50
€48,50 €48,50
Tax included.

Safety starts at the main switch: This battery master switch from Roca reliably disconnects your onboard electrical system from the power – and it's gas-tight according to ISO 8846. This makes it the right choice on board, even in areas where engine compartment gases or battery gases can accumulate.

Tip: After installation, treat pole bolt connections with marine corrosion protection spray to permanently minimize contact resistance and oxidation.
brand: Roca
Availability: Out of stock
SKU: 1271097
Product group:
category:
Electrical systems > On-board electrical system technology > Battery switches
RocaRoca Spare Key for Battery Main Switch 1271091
Roca Ersatzschlüssel für Batteriehauptschalter 1271091
Blue Sea Systems Batterieschalter An/Aus 350 A – Hauptschalter mit M10-Anschluss
Blue Sea SystemsBlue Sea Systems Battery Switch On/Off 350 A – Main Switch with M10 Terminal
Roca Batteriehauptschalter gasdicht – 250 A / 24 V nach ISO 8846
€48,50
€48,50 €48,50

  • Gas-tight according to ISO 8846 – protects against ignition of flammable gases
  • Working load 250 A / 24 V for powerful on-board electrical systems
  • Short-time current up to 1000 A DC (5 sec.) – withstands starter peaks
  • Fire-resistant polyamide housing for permanent use on board
  • Switch bridge and pole bolts made of 99.9% pure copper (DIN 1787), tin-plated – optimal conductivity, minimal transition losses
  • Stainless steel locknuts – corrosion-resistant and low-maintenance

Standards ISO 8846 (hermetically sealed, protection against ignitable gases)
Working Load 250 A / 24 V DC
Short-time Current 1000 A DC / 5 Sec.
Thermal Current 250 A DC
Insulation Voltage 1000 V DC
Housing Material Flame-retardant Polyamide
Switch Bridge / Pole Bolts Pure Copper 99.9% (DIN 1787), tinned
Locknuts Stainless Steel

Roca

Gewicht (ca.): 0.34 kg
